RB503

The RB503 shock absorber bracket kit is a universal U shaped kit (Clevis mounts ONLY) to fit shock absorbers to round or square axles.

The key advantages of fitting shocks to steel sprung trucks and trailers include:

  • Vastly improved tyre wear (better traction)
  • Better braking (No Axle-hop or wind up)
  • Reduced vibration damage (less equipment & load damage)

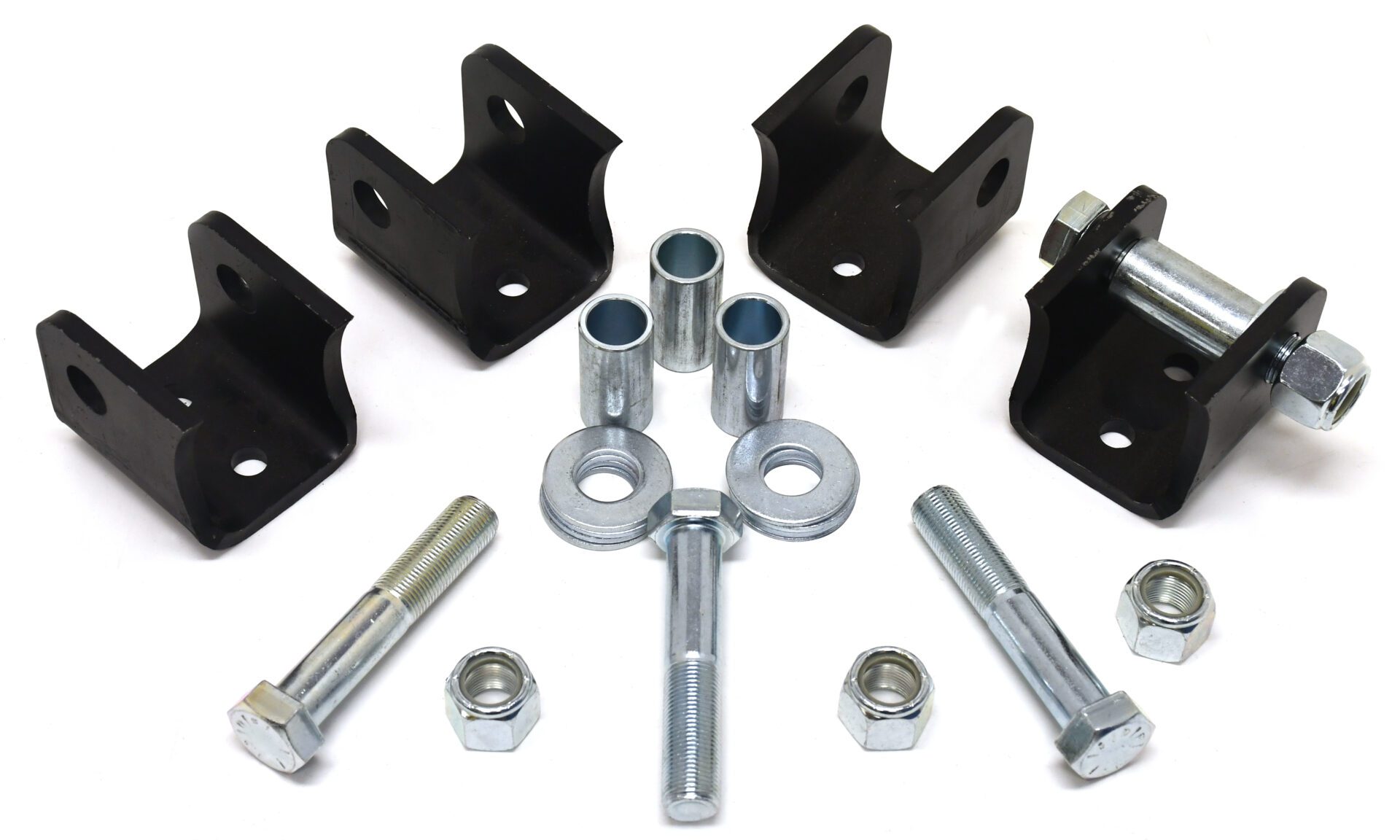

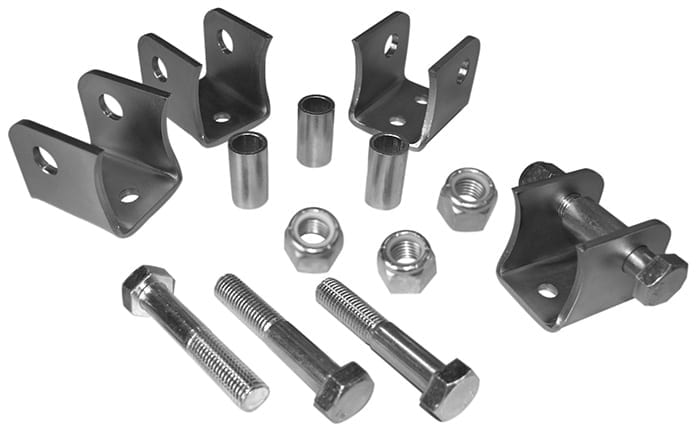

Complete bracket kit contains

  • 4 x U-brackets
  • 4 x Bolts 3/4 UNF ZP GR8 3”
  • 4 x Nylock Nuts 3/4 UNF
  • 4 x Sleeves ID20xOD25.4xW50mm
  • 8 x Wahers ID20xOD44.5xT3mm

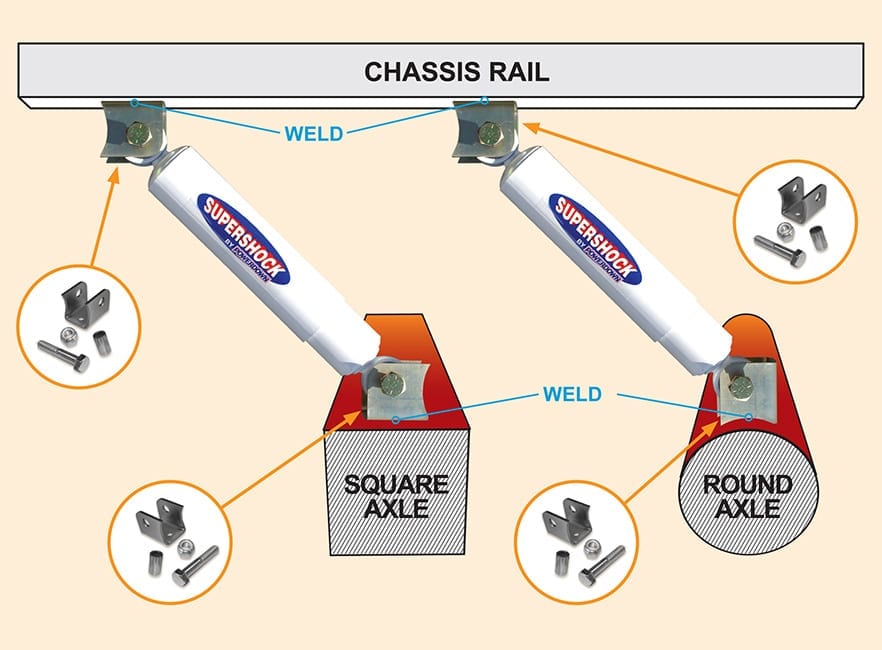

Simulated Side View of Assembled Componentry

Complete bracket kit contains componentry hardware only for the installation of 2 shock absorbers. Bracket kit does not include shock absorbers. Diagram for illustration purposes only.

M1153K

The M1153K front lower mount bracket kit is a highly recommended upgrade suitable for fitment to the Hino FD1J Ranger when replacing the OE shock absorbers.

The key advantage of installing the M1153K kit is that a shock absorber with greater control can be fitted improving overall steering and handling, without the risk of breaking the original 12 mm mounts.

The bracket kit utilises a larger 16 mm lower mounting pin that is retro-fitted under the axle by a longer U-bolt.

Complete bracket kit contains

  • 2 front U-bolts
  • 1 right hand lower mount
  • 1 left hand lower mount

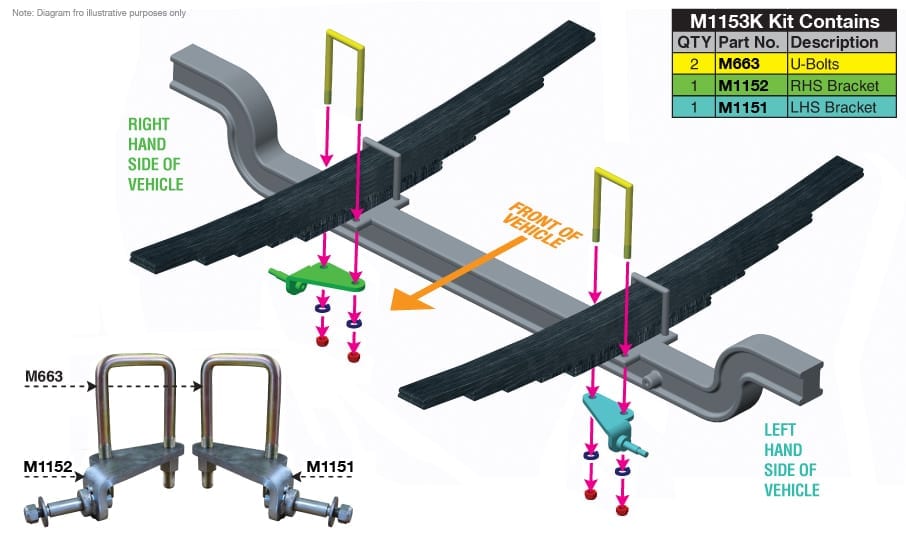

Mounted M1153K Kit

3D render of M1153K kit mounted on a truck.

Mounting Technique

How to fit the M1153K kit

M1153K kit installation

The bracket kit utilises a larger 16mm lower mounting pin that is retro-fitted under the axle by a longer U-bolt.
