Expanding on the already vast Supershock range Powerdown’s super responsive low pressure gas shock absorbers take performance & endurance to the next level.

This is achieved by incorporating the following heavy duty features:

  • Low pressure gas to keep the unit operating at lower temperatures
  • Large 45 mm disc valve European design for extra control & load protection
  • Advanced low friction high temperature seal
  • Increased body size for extra oil capacity
  • High tensile strength

The Benefits

  • Low Pressure Gas

    Keeps the unit operating at lower temperatures.

  • Heavy Duty with Increased Dampening Rate

    For our roads which can vary from a highway to narrow bitumen and gravel within a matter of a few kilometres.

  • Larger Oil Capacity

    Vastly improving the shock absorbers ability to dissipate heat and operate cooler under hard working conditions.

  • Extra Comfort & Control

    Powerdown shock absorbers will not only significantly improve driver comfort and control by keeping the vehicle’s tyres in contact with the road surface, there will be also additional cost savings in tyre and suspension wear.

Black Eye Ring

Features

Eye Rings

360° Welds & One piece Eye Rings for increased strength and durability

Body & Shields

Increased body size for extra oil capacity

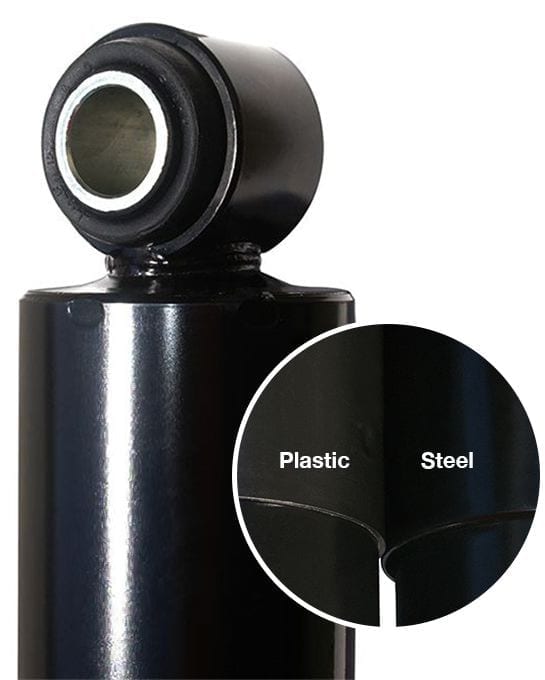

Different Shields – the thinner plastic shield allows for fitment in tighter spaces where a steel dust shield will not fit.

High Tensile

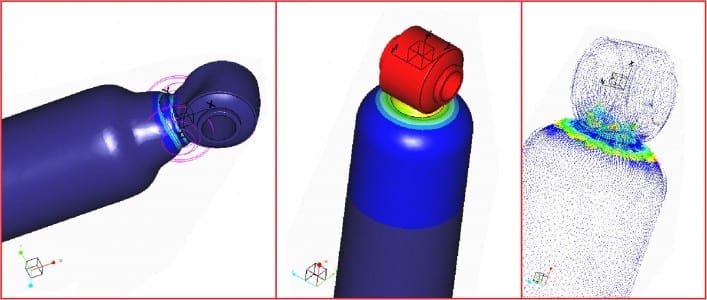

Materials, fittings & welds As illustrated in the Finite Elements Analysis stress test images.

Engineered for Performance

Large bore sizes – 45 mm

Increased oil capacity vastly improving the shock absorbers ability to dissipate heat and operate cooler over long distances and constant high speeds

Upgraded dampening forces for our roads and higher load constraints

Powerdown shock absorbers achieve enhanced performance and longevity through

  1. Larger external body sizes
  2. Improved dampening
  3. Increased piston sizes
  4. High temperature oil
  5. Seals resistant to elevated temperatures

Illustration Key

  • Dust Cover
  • Rod Guide & Seal
  • External Tube
  • Piston
  • Working Tube
  • Foot Valve
  • Piston Rod

Technology

This article from Trailer Magazine explains the technology and research behind this new shock design.

Powerdown ED TM0315

Trailer Applications

Part No. OE Numbers Applications
P183M1 2.376.001.001
2.376.001.002
2.376.001.400
2.376.001.500
2.376.001.800
SAF AR316, AR413, AR416, EU416

Part No. OE Numbers Applications
P184 401700124223
61-610442
787803
91-2756
TMC LMV

York Duratrac / Tech Air II


P185 61.506717.02
40 1700 125 753
TMC 11T series

York Tech Air I eye/eye mounts


P203 2.376.0071.00
2.376.0071.01
2.376.5071.00
SAF Trailer
Intradisc Plus ll

P322 B-21699
S-21699
Hendrickson Intrax Extra Heavy Duty

P345 17300
19037
WCTA-002
Watson & Chalin
TA & TI Underslung

P345M2 212.25.104
90-2456
ROR / Meritor
XL9000 Flexlite

P500 2.376.0031.00 SAF Trailer
Intra Disc plus
Underslung J series

P526 91-9526W Weweller Trailer
MBS9T

P643 91-2643W Weweller Trailer
Ultra Lite Series

P672 2.376.0022.00
2.376.0026.00
2.376.0028.00
SAF Trailer
Intra Disc plus
Overslung J seriess
P672 02.3722.14.00 BPW Trailer

P684 21224331
21224745
90-2368SP1
90-2368SP2
90-2400
91-2400
R.O.R. Trailer
FL91000/FL11000
FLX12000/FLX1400
Weweller Trailer

P742 212.28.392 ROR / Meritor
Euroflex
CS9i – Low Mount

P801 212.15.607
212.15.742
212.15.751
212.15.807
212.21.306
90-2022
90-2022SP2
90-2036
90-2227
R.O.R. Trailer
FL91000/FL11000
FLX12000/FLX1400
Weweller Trailer

P906 02.3702.18.00
02.3702.18.00HD
02.3702.18.02
90-2024SP1
90-2024SP3
401700112790
BPW Trailer Airlight 2 / HD Series

P53024 02.3702.14.00
02.3702.19.00
02.3702.36.00
02.3702.52.00
BPW Trailer

Truck Applications

Part No. OE Numbers Applications
P226 10-12703-000
10-13211-000
10-13634-000
10-13809-000
Freightliner Front
Argosy
Century Class
CascadiaColumbia

P489 1370093
1380425
1380427
1397523
1478507
1478509
1519631
1519633
Scania Rear
Air Suspension

P657 1370267
1420474
1421062
1861117
Scania Front

P705 K374-7
K374-9
K374-29
K374-32
Kenworth Rear
Airglide 100

P769 1629476 Volvo Rear

P775 1371448
1478499
1478500
SCANIA – 114/124/144/164  Fr Air Suspension

P793 90-2478SP3
90-2478SP4
C71-1006
K374-38
Kenworth
Airglide 9” & 10.5”

P809 20374543
20585556
20766063
21232663
Volvo Rear
RAD-A4

P844 16-13957-000
16-13957-003
16-15817-000
16-18708-000
Freightliner Rear
Airliner FAS II

P844M2 3549099C2
3573265C1
3586883C1
3620395C1
International rear
IROS

P992.C 1629992
3171962
20374545
20374546
20374548
20900497
Volvo FM & FH Front

P1041 90-2477SP1
C71-1012
K374-41
Kenworth Airglide 9″

Discover the Powerdown difference
